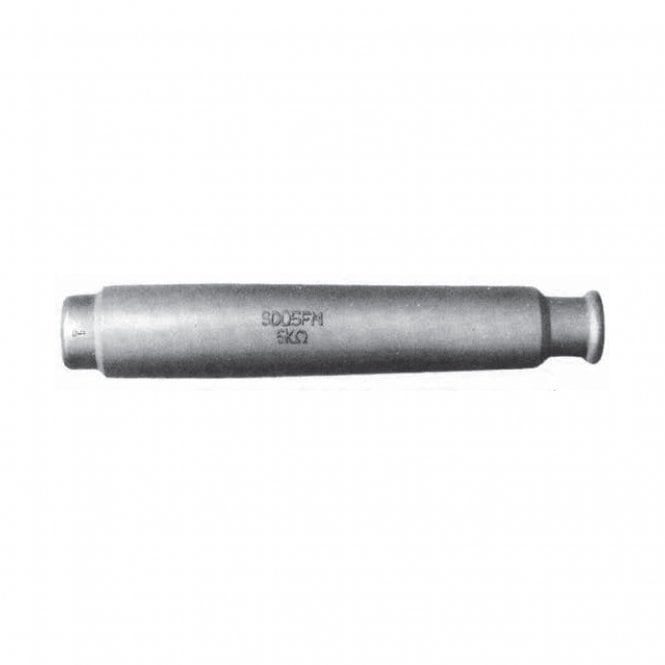

NGK Spark Plug Cap SD05FM (8392) - Black 0721401

NGK SD05FM Black Spark Plug Cap

• Fits NGK D series plugs with threaded terminals
• Straight type 108mm total length
• To fit 10-12mm spark plug
• 5 kilo ohm resistor
• Terminal stud
• Rubber sheathed makes these ideal for off-road bikes

Water resistant, vibration resistant and tough EPDM (Ethylene Propylene Diene Monomer) compounded rubber with nylon reinforcement construction at each end preventing moisture from causing electrical leakage and with a resistor in between the plug terminal and the high-tension lead connection prevents interior shorting and maintains a steady resistance.

The NGK range of resistor covers are designed to give perfect noise suppression across all frequencies whilst engine performance is not adversely affected whatsoever.

Featuring a resistor element pressed in between the plug terminal and the high tension wire connection, the construction is extremely durable, the resistor element is long enough to prevent interior flashover, and steady resistance is maintained. Superlative ceramic materials are incorporated that resist deterioration and have small resistance variation under over-load, whilst the plug connector is made of sturdy phenolic resin, practically oblivious to tremendous heat and high tension, and very rugged rubber material. The heat press insertion makes the construction all the more tough and vibration-resistant. Special rubber liners on both ends prevent moisture from causing electrical leakage.

All motorcycle manufacturers now comply with current legislation which demands a standard of noise suppression on every vehicle. This is achieved usually by fitting NGK resistor covers though in many cases a combination of NGK resistor covers and NGK resistor spark plugs (R type) is necessary to satisfy the ministry tests. It is emphasized that despite the use of both resistor covers and spark plugs in such engines, due to the unique and superior construction of NGK branded products there is no loss of performance or shortening of service life

Fitment Summary
Compatible with 407 models (yearly).

• Honda: NR750 PGM-Fi, RVF400 RR, RVF750 RR, RVF750 RS, RVF750 RT, RVF750 RV, RVF750 RW, RVF750 RX, XR250 L, XR250 R, XR250 R-B, XR250 R-C, XR250 R-D, XR250 R-E, XR250 R-F, XR250 R-G, XR250 R-H, XR250 R-J, XR250 R-K, XR250 R-L, XR250 R-M, XR250 R-N, XR250 R-P, XR250 R-R, XR250 R-S, XR250 R-T, XR250 R-V, XR250 R-W, XR250 R-X, XR250 R-Y, XR250 SA, XR250 SZ, XR400 R, XR600 R1, XR600 R2, XR600 R3, XR600 R4, XR600 RF, XR600 RG, XR600 RH, XR600 RJ, XR600 RK, XR600 RL, XR600 RM, XR600 RN, XR600 RP, XR600 RR, XR600 RS, XR600 RT, XR600 RV, XR600 RW, XR600 RX, XR600 RY, XR650 L, XR650 R1, XR650 R2, XR650 R3, XR650 R4, XR650 R5, XR650 R6, XR650 R7, XR650 R8, XR650 R9, XR650 RY, XR650 SM Supermotard
• Kawasaki: ZR 250 Balius, ZR 250 Balius II, ZXR 250A1, ZXR 250B1, ZXR 250B2, ZXR 250C1, ZXR 250C2, ZXR 250D1, ZXR 400R, ZXR 400 R-RR, ZXR 750H1, ZXR 750H2, ZXR 750J1, ZXR 750J2, ZXR 750K1, ZXR 750K2, ZXR 750L1, ZXR 750L2, ZXR 750L3, ZXR 750M1, ZXR 750M2, ZZR 1100C1, ZZR 1100C2, ZZR 1100C3, ZZR 1100D1, ZZR 1100D2, ZZR 1100D3, ZZR 1100D4, ZZR 1100D5, ZZR 1100D6, ZZR 1100D7, ZZR 1100D8, ZZR 1100D9
• KTM: Duke 400, EGSE 400, Enduro 400 LC-4, EXC 350 Enduro, SC 400 LC4 Supercomp
• Suzuki: GSX 1100G, GSX 750FK, GSX 750FL, GSX 750FM, GSX 750FN, GSX 750FP, GSX 750FR, GSX 750FS, GSX 750FT, GSX 750 W Retro, GSXR 1100G, GSXR 1100H, GSXR 1100J, GSXR 1100K, GSXR 1100L, GSXR 1100M, GSXR 1100N, GSXR 1100WP, GSXR 1100WR, GSXR 1100WS, GSXR 1100WT, GSXR 1100WV, GSXR 1100WW, GSXR 1100WX, GSXR 1100WY, GSXR 400H, GSXR 400J, GSXR 400R2, GSXR 400R3, GSXR 400 RL RFL, GSXR 400RM, GSXR 400RN, GSXR 400RP, GSXR 400RR, GSXR 400RS
• Triumph: America 800, America 865, America 865LT, Bonneville 800, Bonneville 800 908MD, Bonneville 800 T100, Bonneville 865SE, Bonneville 865 Steve McQueen, Bonneville 865 T100, Bonneville 900 T100, Scrambler 865, Scrambler 900, Speedmaster 800, Speedmaster 865 Twin Disc, Thruxton 865 Ace Single Disc, Thruxton 865 Ace Twin Disc, Thruxton 865 Single disc, Thruxton 865 Twin discs
• Yamaha: FZ 750N, FZ 750S, XS 250 C Alloy Wheels, XS 250 D Alloy Wheels, XS 250 E Alloy Wheels, XS 250SE, XS 250SF, XS 250SG, XS 250SH, XS 250SJ, XS 250SK, XS 250SL
